Using HAProxy for Ngrok-style domain tunneling in Nixos with SSL self-renewal enabled
Another way to do the same tunneling without Ngrok or any paid service, but this time with autorenewal of the SSL and in a more robust and simple manner.
I love accessing computers from elsewhere yet hate Ngrok, Tailscale and Zrok with passion so I made a post not long ago about how to self-host Pagekite to be able to use your own domain names for this. The problem is how ugly it made my configuration.nix files and how I didn’t manage to write an auto-renewal script. Today I’ve figured how using ACME. HAProxy seems to have the same issue of wanting a single file for all keys but I managed to bypass that one here.
Configuration.nix
# Assuming configuration.nix
{
# Rest of your file
imports = [
# Rest of your imports
./haproxy-acme.nix
]
}
Server: haproxy-acme.nix
Change serverNames for whatever list of servers you want to add, don’t forget to manually edit the services.haproxy.config configuration too for your added servernames without SSL, in my case is my zerotier one, accessible on my zerotier network.
The acme_emailvariable should point to your var.
{ config, pkgs, ... }:
let
acme_email = "acme@maikel.dev";
# Map domains to their backend host:port
serverBackends = {
"something_one.maikeladas.es" = "127.0.0.1:4000"; # Phoenix dev server.
"something_else.maikeladas.es" = "thinkpad.zerotier:8080"; #Zerotier URL
};
serverNames = builtins.attrNames serverBackends;
# ACLs
aclLines = builtins.concatStringsSep "\n" (map (d:
let aclName = "host_${builtins.replaceStrings [ "." ] [ "_" ] d}";
in " acl ${aclName} hdr(host) -i ${d}"
) serverNames);
redirectLines = builtins.concatStringsSep "\n" (map (d:
" http-request redirect scheme https code 301 if host_${builtins.replaceStrings [ "." ] [ "_" ] d}"
) serverNames);
# use_backend lines
backendLines = builtins.concatStringsSep "\n" (map (d:
let
aclName = "host_${builtins.replaceStrings [ "." ] [ "_" ] d}";
backendName = builtins.replaceStrings [ "." ] [ "_" ] d;
in " use_backend ${backendName}_app if ${aclName}"
) serverNames);
# crt files
crtFiles = builtins.concatStringsSep " " (map (d:
"crt /var/lib/haproxy/certs/${d}.pem"
) serverNames);
# backend definitions
backendDefs = builtins.concatStringsSep "\n" (map (d:
let
backendName = builtins.replaceStrings [ "." ] [ "_" ] d;
backendAddr = serverBackends.${d};
indent = " "; # 1 tab = 4 spaces
in ''
backend ${backendName}_app
mode http
server ${backendName}_1 ${backendAddr} check inter 2s fall 3 rise 2
errorfiles customerrors
''
) serverNames);
in {
# SSL certificates for HAProxy
security.acme = {
acceptTerms = true;
defaults.email = acme_email;
certs = builtins.listToAttrs (map (domain: {
name = domain;
value = {
webroot = "/var/lib/acme/acme-challenge";
group = "haproxy";
postRun = ''
mkdir -p /var/lib/haproxy/certs
cat /var/lib/acme/${domain}/fullchain.pem \
/var/lib/acme/${domain}/key.pem \
> /var/lib/haproxy/certs/${domain}.pem
chown root:haproxy /var/lib/haproxy/certs/${domain}.pem
chmod 0640 /var/lib/haproxy/certs/${domain}.pem
'';
};
}) serverNames);
};
# HAProxy service
services.haproxy = {
enable = true;
config = ''
global
log stdout format raw local0
maxconn 2000
defaults
log global
mode http
option httplog
option dontlognull
option forwardfor except 127.0.0.1
timeout connect 5s
timeout client 30s
timeout server 30s
retries 3
frontend http_in
bind *:80
acl acme_challenge path_beg /.well-known/acme-challenge/
use_backend acme_backend if acme_challenge
acl host_zt hdr(host) -i stephen.zerotier
${aclLines}
use_backend something_one_maikeladas_es_app if host_zt
${redirectLines}
default_backend not_found
frontend https_in
bind *:443 ssl ${crtFiles}
mode http
acl acme_challenge path_beg /.well-known/acme-challenge/
${aclLines}
use_backend acme_backend if acme_challenge
${backendLines}
default_backend not_found
backend acme_backend
mode http
server local_acme 127.0.0.1:8081
${backendDefs}
http-errors customerrors
errorfile 503 /etc/haproxy/errorfiles/503.http
backend not_found
mode http
errorfiles customerrors
'';
user = "haproxy";
group = "haproxy";
};
environment.etc."haproxy/errorfiles/503.http".text = ''
HTTP/1.1 503 Service Unavailable
Cache-Control: no-cache
Connection: close
Content-Type: text/html
${builtins.readFile ./haproxy-error-503.html}
'';
# Local HTTP server to serve ACME challenges
systemd.services.acme-challenge-server = {
description = "Serve Let's Encrypt challenges for HAProxy";
wantedBy = [ "multi-user.target" ];
serviceConfig = {
ExecStart = "${pkgs.python3}/bin/python3 -m http.server 8081 --directory /var/lib/acme/acme-challenge";
Restart = "always";
};
};
}
Your laptop or other PC configuration to be accessible
Assuming you use Zerotier (is free) and have it in the same network as the server (I do) and you know the IP or domain name if you have it in /etc/hosts (I do but I prefer to use IPs). Notice how I’ve limited the listening interfaces to that one of Zerotier only.
Of course import this file in your configuration for that machine. I call it haproxy-redirect.nix to make it clear what the nix contains.
{ config, pkgs, ... }:
{
# HAProxy service
services.haproxy = {
enable = true;
config = ''
global
log stdout format raw local0
maxconn 2000
defaults
log global
mode http
option httplog
option dontlognull
option forwardfor except 127.0.0.1
timeout connect 5s
timeout client 30s
timeout server 30s
retries 3
frontend local_http
bind thinkpad.zerotier:8080
default_backend phoenix_app
backend phoenix_app
server phoenix_1 127.0.0.1:4000 check inter 2s fall 3 rise 2
errorfile 503 /etc/haproxy/errorfiles/503.http
'';
user = "haproxy";
group = "haproxy";
};
environment.etc."haproxy/errorfiles/503.http".text = ''
HTTP/1.1 503 Service Unavailable
Cache-Control: no-cache
Connection: close
Content-Type: text/html
${builtins.readFile ./haproxy-error-503.html}
'';
}

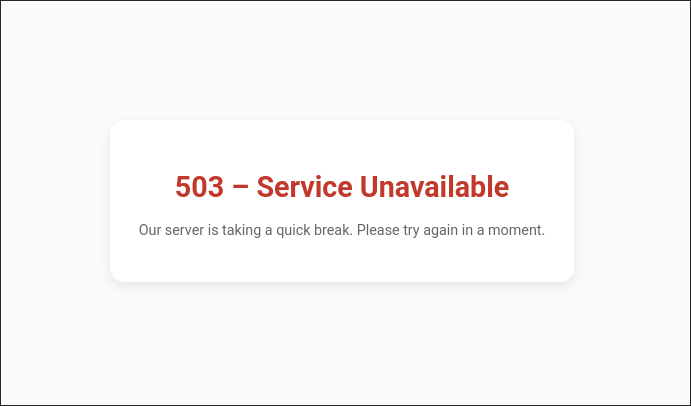

The default 503 error file
All errors I got when I turned off any of them servers were of type 503 so that’s the error I customised. The files is haproxy-error-503.html and should be in the same folder as the nix configuration. The content is this
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8" />
<title>Service Unavailable</title>
<style>
body {
font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, sans-serif;
background: #fafafa;
color: #333;
margin: 0;
display: flex;
align-items: center;
justify-content: center;
height: 100vh;
}
main {
text-align: center;
padding: 2rem;
background: white;
border-radius: 1rem;
box-shadow: 0 4px 12px rgba(0,0,0,0.08);
}
h1 {
font-size: 2rem;
margin-bottom: 0.5rem;
color: #c0392b;
}
p {
font-size: 1rem;
color: #666;
}
</style>
</head>
<body>
<main>
<h1>503 – Service Unavailable</h1>
<p>Our server is taking a quick break. Please try again in a moment.</p>
</main>
</body>
</html>
Advantages over the Pagekite way
- HAProxy is a lot more robust.
- Since you’re using already a machine as server and Zerotier for LAN-like communication, this harness precisely all that to make the config a lot simpler.
- SSL renewal bult-in.
- You can just stop the services whenever, the 503 custom-error page will be shown. No need to remember to “sysctl stop whatever”
- Custom error page.
